|Place of Origin:||China|
|Minimum Order Quantity:||500Meters / 100pcs|
|Price:||Price is negotiable|
|Packaging Details:||Paper Carton|
|Payment Terms:||T/T, Western Union|
|Hardness:||65~75 Shore A||Work Pressure:||0.2~0.5Mpa|
nitrile rubber tube,
fuel filler hose

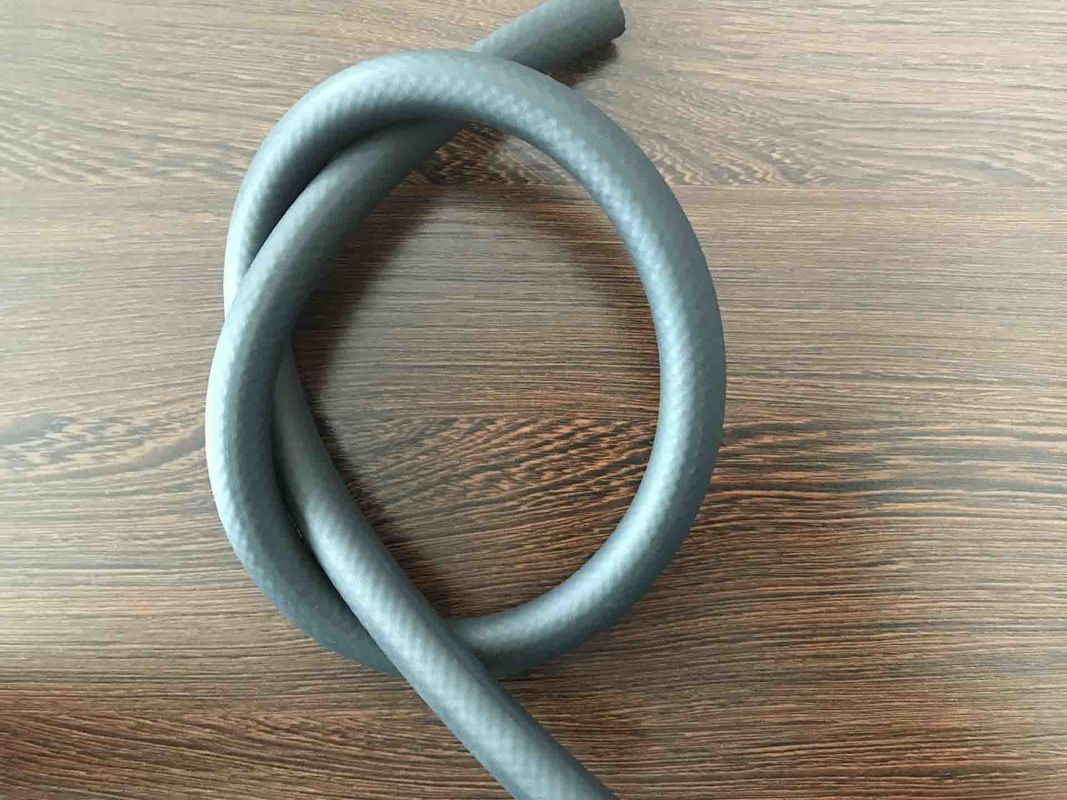

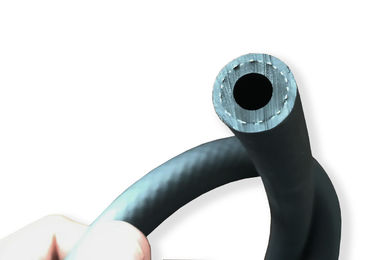

SAE J30 R10 Fuel Suction FKM Line In-Tank Low-Pressure
|Fuel resistance||CE10,CE20,CM15,CM85, OXIDIZED FUEL, FUEL A/B/C/D,Gasoline,Diesel|
|Permeability||Meet CARB & EPA, <15grams/m2/day|
|Flammability resistance||Self extinguish at 10 secs|
|Meet Spec.||SAE J30 R10,SAE J200 HK710,|
FKM has excellent resistance to high temperature, gasoline fuel,oil, solvent, flame, chemical and weather. Use it as the inner tube material, can effectively resist fuel resistance with good low permeation. Fuel Suction Hose need to long soak in gasoline tank, so FKM as a cover material is the best choose. And aramid reinforcement can enhance its pressure resistance. This group of hose is usually applied to pump fuel system in tank of automotive, motorcycle, ATV, generator, general motor, construction machinery, agriculture and forestry machinery, etc.
Goodyou use FKM material in many rubber hoses and molded rubber parts to meet the specific applications that customer need.
|Heat Aging Resistance||Excellent|
|Compression Set Resistance||Good|
|Gas Permeability Resistance||Good|
|Fuel and Oil Resistance||Excellent|
Goodyou offers FKM rubber and with our expert lab and testing facilities can produce custom compounds to increase the range of characteristics to meet additional required performance levels.
Contact us and request a quote today. We promise to reply you within 24hours!
