| Place of Origin: | China |
| Brand Name: | Goodyou |
| Model Number: | EFH09 |
| Minimum Order Quantity: | 500Meters / 100pcs |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Paper Carton |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Material: | FKM/Aramid/FKM | Temp. Range: | -20~+150℃ |
|---|---|---|---|
| Hardness: | 65~75 Shore A | Work Pressure: | 0.2~0.5Mpa |
| Burst Pressure: | 1.0~2.0Mpa | Size: | Customized |
| High Light: | nitrile rubber tube,fuel filler hose |
||

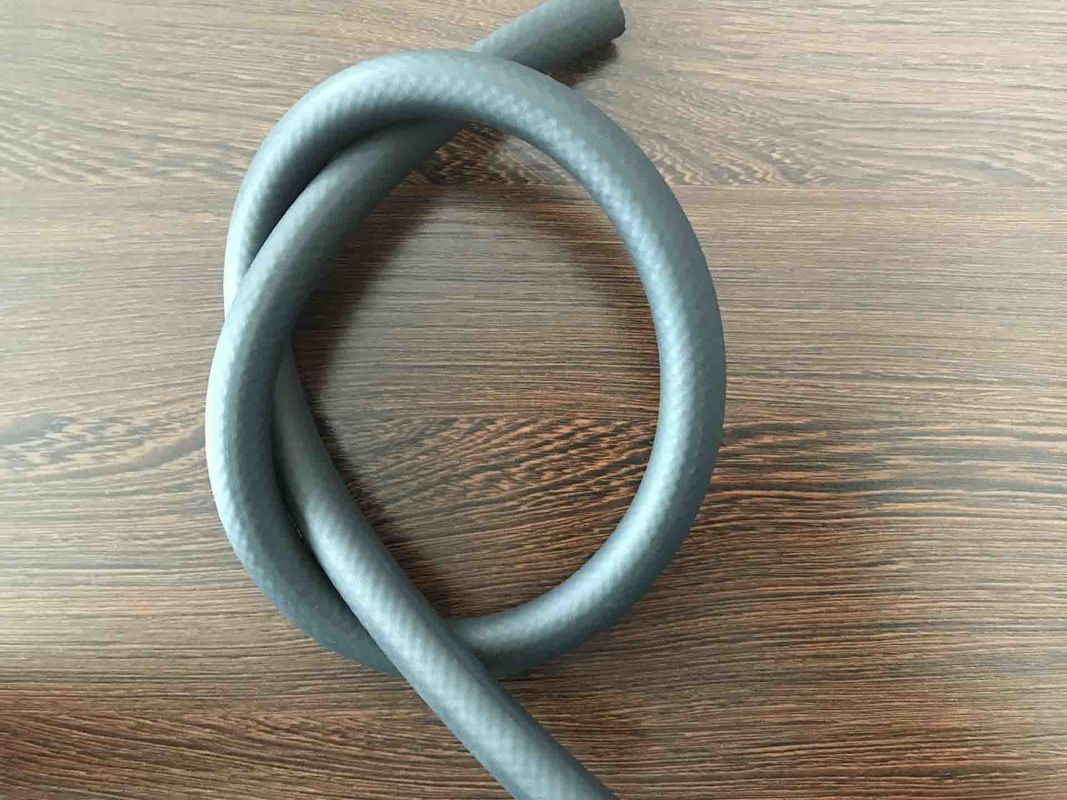

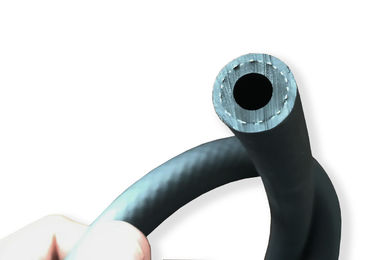

SAE J30 R10 Fuel Suction FKM Line In-Tank Low-Pressure
| Characteristic | Performance |
| Fuel resistance | CE10,CE20,CM15,CM85, OXIDIZED FUEL, FUEL A/B/C/D,Gasoline,Diesel |
| Permeability | Meet CARB & EPA, <15grams/m2/day |
| Flammability resistance | Self extinguish at 10 secs |
| Ozone resistance | 50pphm*100H*40℃*20%Stretch |
| Meet Spec. | SAE J30 R10,SAE J200 HK710, |
FKM has excellent resistance to high temperature, gasoline fuel,oil, solvent, flame, chemical and weather. Use it as the inner tube material, can effectively resist fuel resistance with good low permeation. Fuel Suction Hose need to long soak in gasoline tank, so FKM as a cover material is the best choose. And aramid reinforcement can enhance its pressure resistance. This group of hose is usually applied to pump fuel system in tank of automotive, motorcycle, ATV, generator, general motor, construction machinery, agriculture and forestry machinery, etc.
Goodyou use FKM material in many rubber hoses and molded rubber parts to meet the specific applications that customer need.
| Property | Performance |
| Heat Aging Resistance | Excellent |
| Abrasion Resistance | Fair |
| Compression Set Resistance | Good |
| Tear Resistance | Fair |
| Weather Resistance | Excellent |
| Mechanical Properties | Good |
| Gas Permeability Resistance | Good |
| Fuel and Oil Resistance | Excellent |
| Ozone Resistance | Excellent |
Custom Service
Goodyou offers FKM rubber and with our expert lab and testing facilities can produce custom compounds to increase the range of characteristics to meet additional required performance levels.
Contact us and request a quote today. We promise to reply you within 24hours!
