| Place of Origin: | China |
| Brand Name: | Goodyou |
| Model Number: | EOH13 |
| Minimum Order Quantity: | 500Meters / 100pcs |
|---|---|
| Price: | Price is negotiable |
| Packaging Details: | Paper Carton |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, Western Union |
| Material: | ACM/Aramid/ACM | Temp. Range: | -20~+150℃ |
|---|---|---|---|
| Hardness: | 65~75 Shore A | Work Pressure: | 0.5~1.0Mpa |
| Burst Pressure: | 2.0~8.0Mpa | Size: | Customized |
| High Light: | fuel oil hoses,oil return hose |
||
| Characteristic | Performance |
| Oil resistance | ATF, Lubricating oil |
| Fuel resistance | FUEL A/B/C/D |
| Heat Aging resistance | 150℃ |
| Ozone resistance | 50pphm*100H*40℃*20%Stretch |
| Meet Spec. | SAE J1532, ES-X60048 |

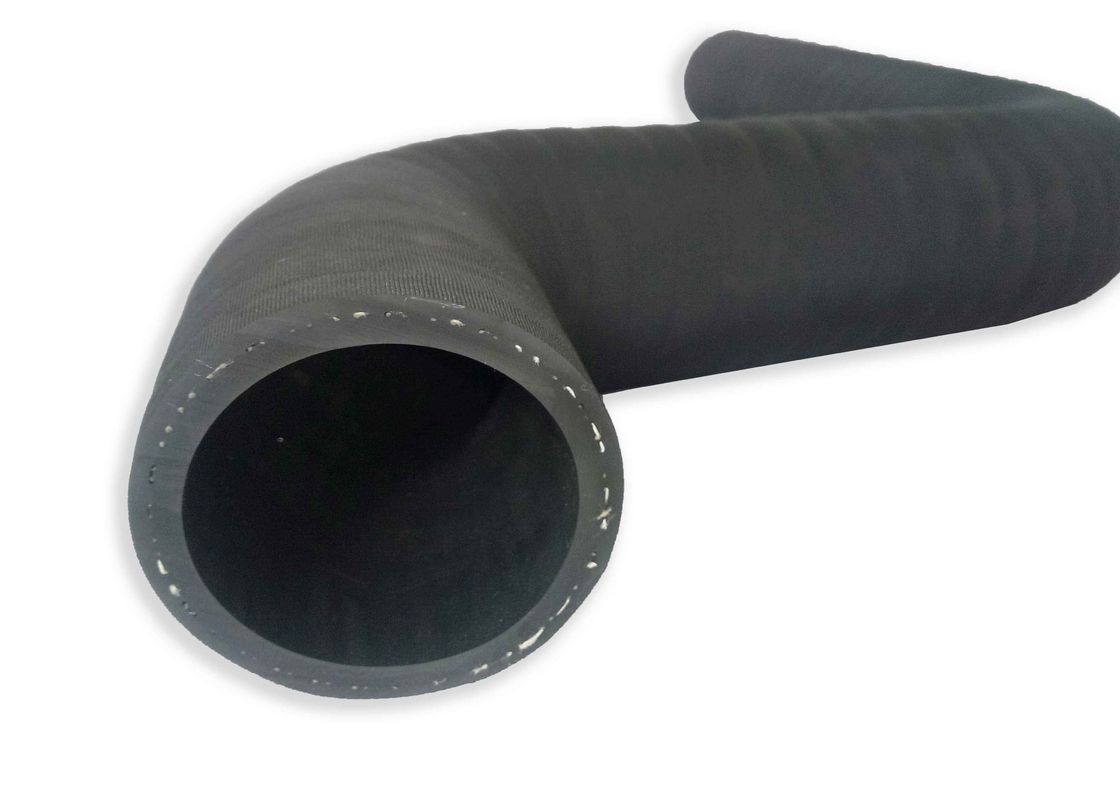

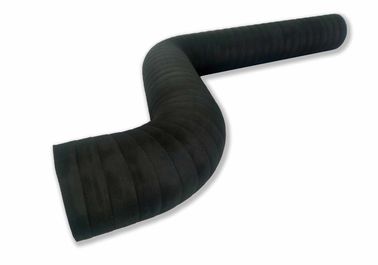

Customized Rubber Oil Hose. ACM has excellent ATF oil resistance, excellent ozone resistance, and high temperature heat aging resistance. Aramid braiding reinforcement(Kevlar) is necessary under working environment with strong pressure and high temp demand. It is suitable to apply in oil coolant system for engine system of automotive, construction equipment, agriculture and forestry machinery, etc. Goodyou is specialized in custom service of variety of rubber products. As an IATF 16949 certified factory, we have rich experienced in producing rubber hoses to meet various industries, particularly in vehicles.
Technical Support
We specialize in producing high-performance custom rubber parts from rubber extruded hoses to molded rubber products. Our technicacl engineers and sales team work closely with customers to thoroughly understand the demand and analyze, then provide suggestions for choosing the best rubber material for specific applications.
Tell us your demand to get customized service. Welcome your arrival.
Contact Person: crystal
Tel: +8613600948823
