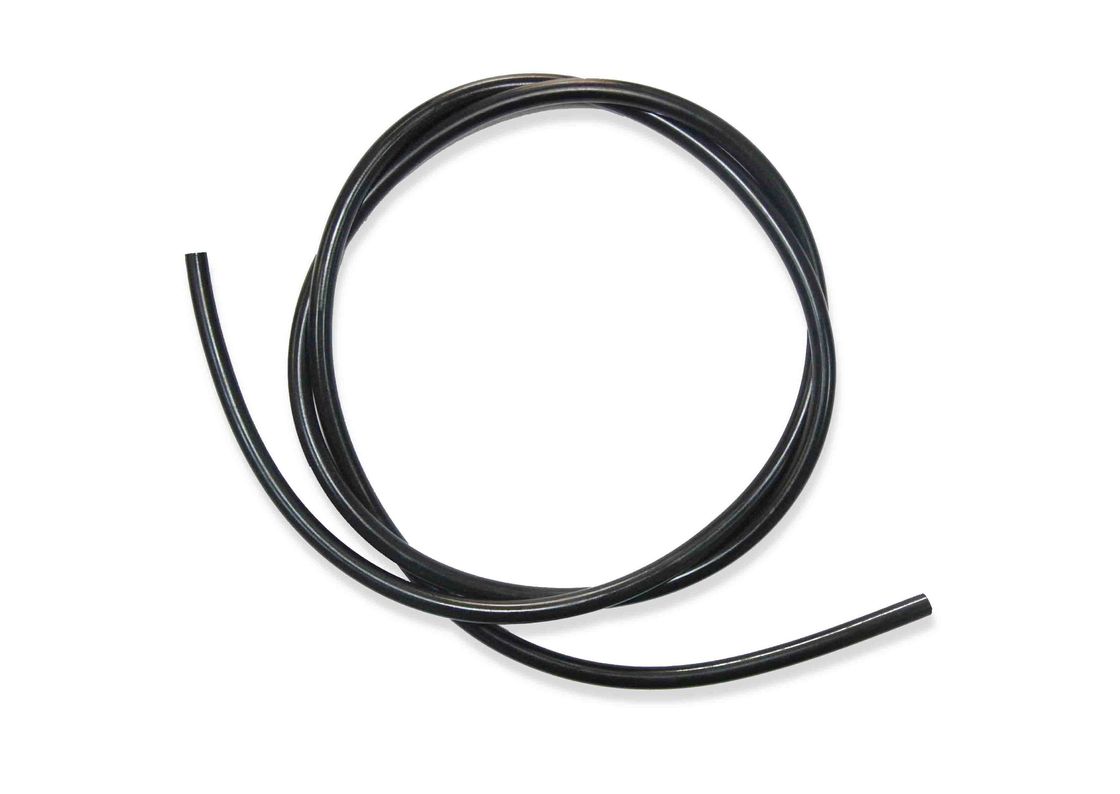

Customized Return Line Fuel Feed Hose , Fuel Vapor Hoses Low Permeation

Customized Return Line Fuel Feed Hose , Fuel Vapor Hoses Low Permeation

  • Customized Return Line Fuel Feed Hose , Fuel Vapor Hoses Low Permeation
Customized Return Line Fuel Feed Hose , Fuel Vapor Hoses Low Permeation
Product Details:
Place of Origin: China
Brand Name: Goodyou
Model Number: EFH10
Payment & Shipping Terms:
Minimum Order Quantity: 500Meters / 100pcs
Price: Price is negotiable
Packaging Details: Paper Carton
Delivery Time: 15-20days
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Material: FKM/ECO/Aramid/ECO Temp. Range: -40~+150℃
Hardness: 65~75 Shore A Work Pressure: 0.5~1.0Mpa
Burst Pressure: 2.0~10Mpa Size: Customized
High Light:

braided fuel hose

,

fuel filler hose



Fuel Feed and Return Line Hose Low Permeation Fuel Fill Vent and Vapor Hoses



Characteristic Performance
Fuel resistance CE10,CE20,CM15,CM85, OXIDIZED FUEL, FUEL A/B/C/D,Gasoline,Diesel
Permeability Meet CARB & EPA, <15grams/m2/day
Flammability resistance Self extinguish at 10 secs
Ozone resistance 50pphm*100H*40℃*20%Stretch
Meet Spec. SAE J1737, SAE J30 R9,SAE J30 R11,SAE J30 R12



FKM works excellent as inner tube to resist biodiesel, petrol and diesel fuel, and have very low fuel permeability, high heat resistance. ECO, black smooth cover material, highly flexible resistance against ozone, acid, abrasion, heat ageing, weather, and low temperature (cold resistance). Aramid is a high tensile textile braiding, it is suitable to work in high temperature environment for strong pressure reinforcement. FKM/ECO/Aramid/ECO hose is good rubber compound to use for fuel system in engines of vehicle, motorcycle, ATV, generator, general motor, construction machinery, agriculture and forestry machinery, etc..



OEM is Available

Goodyou Rubber Hoses are available in bulk rolls or custom length. We are also professional in producing Customized Shaped Size Hoses. Our techinical team has rich experience in rubber industry, is capable to co-work customer to design suitable rubber compound, develop prototype, produce high quality rubber hoses to meet the specific application.

Customized Return Line Fuel Feed Hose , Fuel Vapor Hoses Low Permeation 0Customized Return Line Fuel Feed Hose , Fuel Vapor Hoses Low Permeation 1Customized Return Line Fuel Feed Hose , Fuel Vapor Hoses Low Permeation 2



If you are seaching for high quality fuel hose, believe we will be your good choice. Contact with us!
