Customized Rubber Water Hose SAE J20 R3 D1 Braided Reinforced For Heavy Machine

Customized Rubber Water Hose SAE J20 R3 D1 Braided Reinforced For Heavy Machine

  • Customized Rubber Water Hose SAE  J20 R3 D1 Braided Reinforced For Heavy Machine
  • Customized Rubber Water Hose SAE  J20 R3 D1 Braided Reinforced For Heavy Machine
Customized Rubber Water Hose SAE  J20 R3 D1 Braided Reinforced For Heavy Machine
Product Details:
Place of Origin: China
Brand Name: Goodyou
Model Number: EWH15
Payment & Shipping Terms:
Minimum Order Quantity: 500Meters / 100pcs
Price: Price is negotiable
Packaging Details: Paper Carton
Delivery Time: 15-20days
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Material: EPDM/Yarn/EPDM Temp. Range: -50~+120℃
Hardness: 65~75 Shore A Work Pressure: 0.05~0.1Mpa
Burst Pressure: 0.2~0.5Mpa Size: Customized
High Light:

silicone water hoses

,

reinforced rubber hose


Heater Hose SAE J20 R3 D1Heavy Machine Rubber Hoses Braided Reinforced Water Hose


CharacteristicPerformance
Fluid resistanceCoolant Fluid
Oil resistanceASTM NO.1
Ozone resistance50pphm*200H
Meet Spec.SAE J20 R4/R3 D1/D2/D3 , HES D3210 WH-A, ES-60607

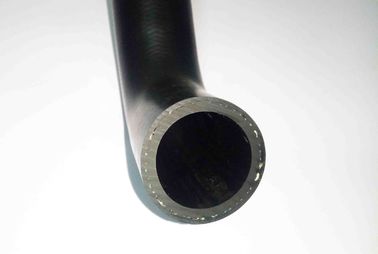

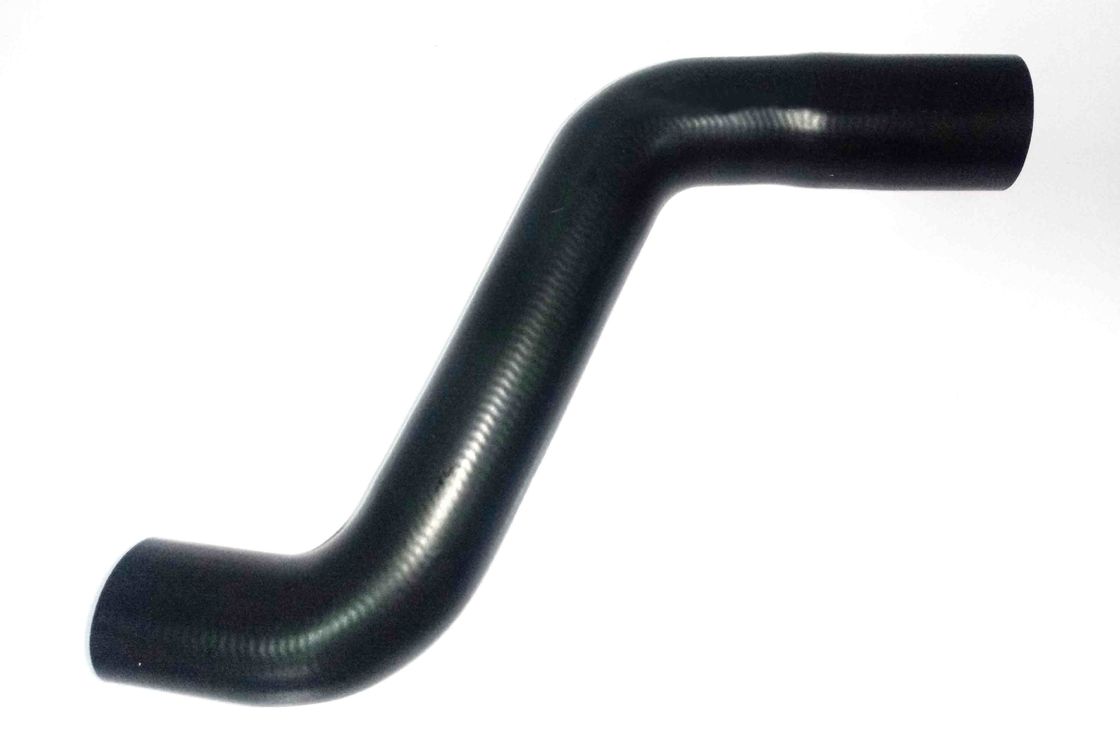

Rubber water hose is designed for water delivery purpose in automobile, passenger bus, light and heavy duty truck, aguiculture, construction machinery, etc. It is engineered with EPDM rubber as inner and outer cover. EPDM as a popular elastomer material has excellent ozone, UV and heat aging resistance, withstand working temperature ranging from -40ºC to 120ºC. It has great weather resistance. A rubber material with ecnomic cost. Add PET yarn as the middle layer to enhance the strength of pressure resistance to make the hose available for environment with particular working pressure demand. Goodyou works with customers to understand the specific requirement to select suitable rubber materail and reinforced material to exactly meet the application.

Customized Rubber Water Hose SAE  J20 R3 D1 Braided Reinforced For Heavy Machine 0Customized Rubber Water Hose SAE  J20 R3 D1 Braided Reinforced For Heavy Machine 1


Customized Service

Goodyou Elastomer provides customers with custom solution for Molded Hose and Reinforced Formed Hose for application across the industries. Rubber Hoses are designed for each application considering Hose specification, media being conveyed, pressure or vacuum and environmental factors to ensure performance specification are met.

Customized Rubber Water Hose SAE  J20 R3 D1 Braided Reinforced For Heavy Machine 2


Welcome to contact with us. Customers' satisfaction is our priority.
